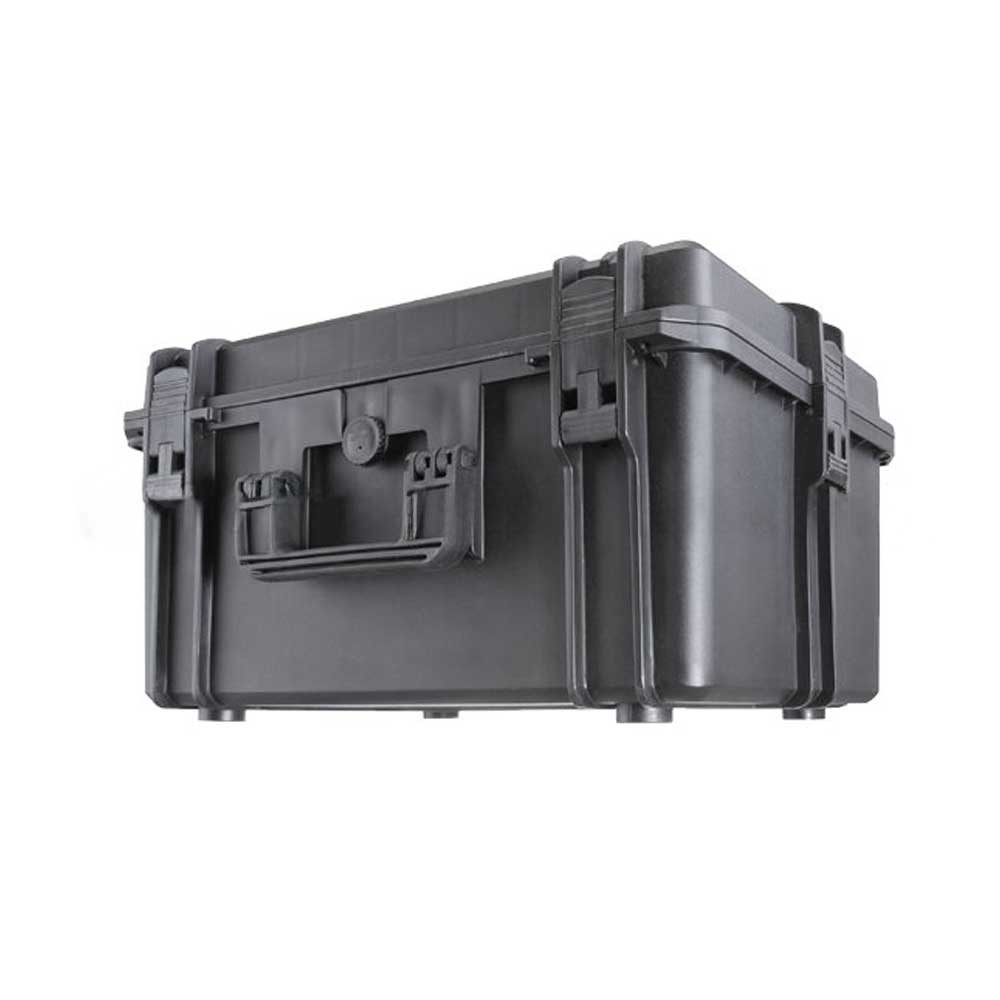

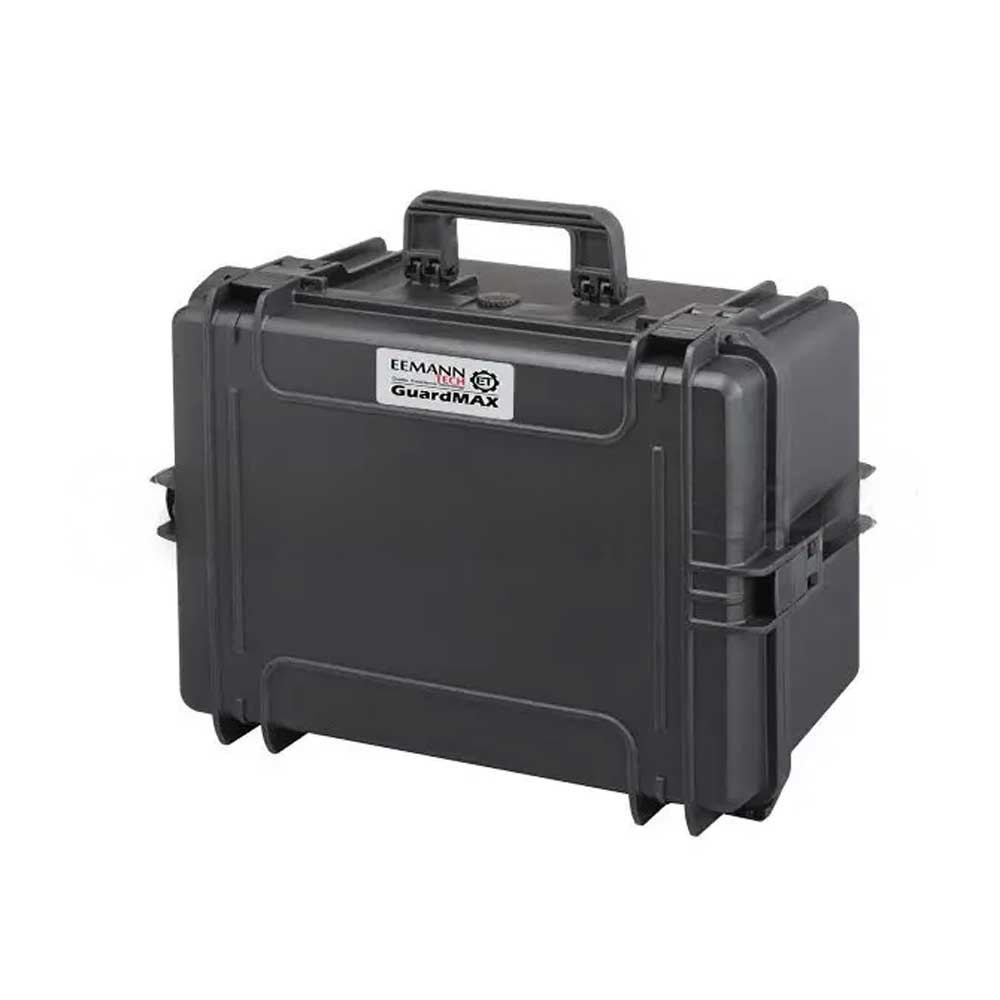

Eemann Tech GUARDMAX 505: Ultimate Waterproof IP67 Protection Case

The Eemann Tech GUARDMAX is a watertight case line designed to carry and protect sensitive equipment and materials. Certified IP67, it meets STANAG 4280 and DEF STAN 81-41 standards and is NATO (NSN) coded. The case is exceptionally resistant to impacts, dust, and atmospheric agents, making it suitable for multiple fields of application, including safety, law enforcement, military, hunting and outdoor activities, boating, photography, broadcasting, and various other sectors of the manufacturing industry.

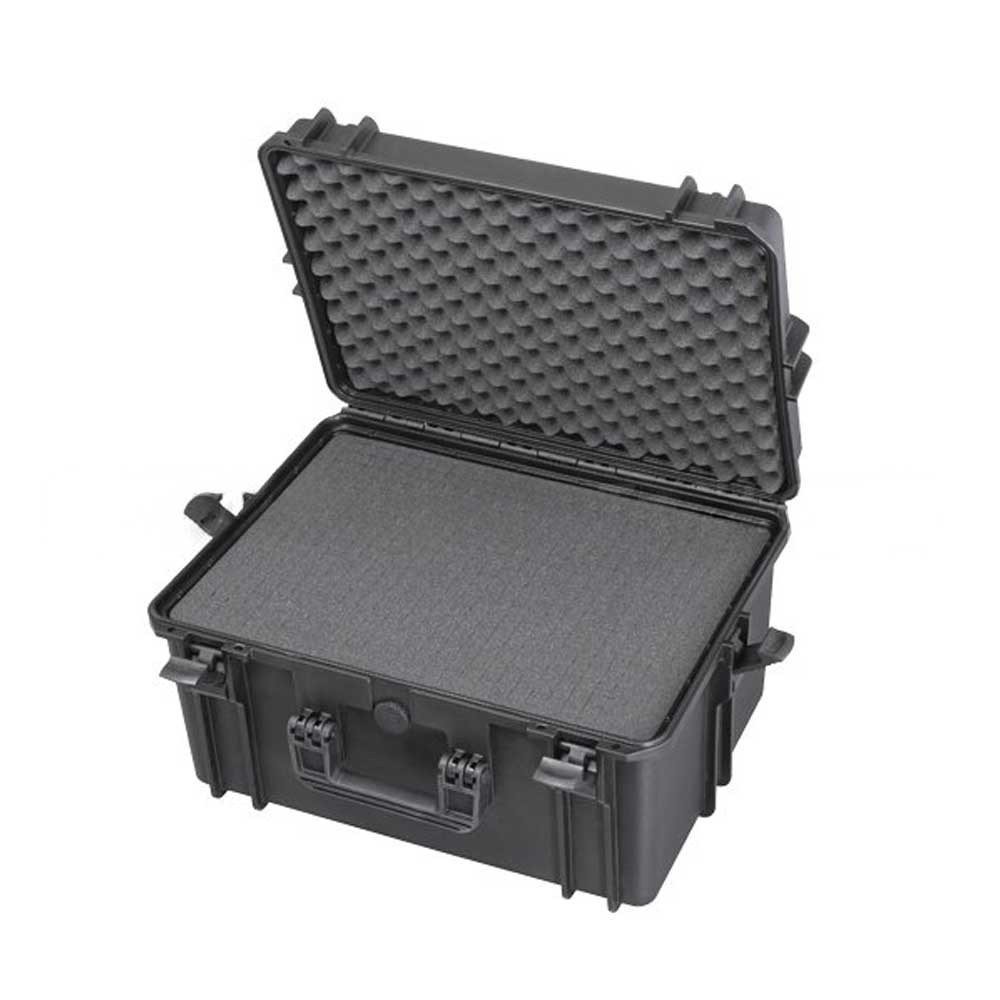

Case includes cubed foams, lid organizer, and padded shoulder strap.

Features:

Waterproof and dustproof IP67 certified
Watertight seal around lid
Automatic pressure release valve
Easy to open double throw latches
Load tested soft grip handle
Holes for double padlocking
Holes for shoulder strap
Stackable interlocking system
Thick body material
Extra fixing points
Fully length hinges
Nylon pins, corrosion free
Cubed foams in the bottom and convoluted foams in the lid available as standard
Screen printing space and rectangular resin label space on the lid

Characteristics:

Size	Height (mm)	Width (mm)	Depth (mm)
External	555	428	306
Internal	500	350	280

Handle Capacity: 30 kg

Volume Capacity: 49 Lt

Internal Cubic Volume: 49,000,000 cubic millimeters

Weight w/o foam: 5.1 kg

Weight with foam: 6.03 kg

Range Temperature: -30 / 90°C

Lid-Bottom depth: 58 + 136 mm

Body and handle: polypropylene copolymer

Latches: nylon

Pins: nylon + 30% fiberglass

O-ring: polymer

Moulding: injection molded

Customization: personalized nameplate/resin label
