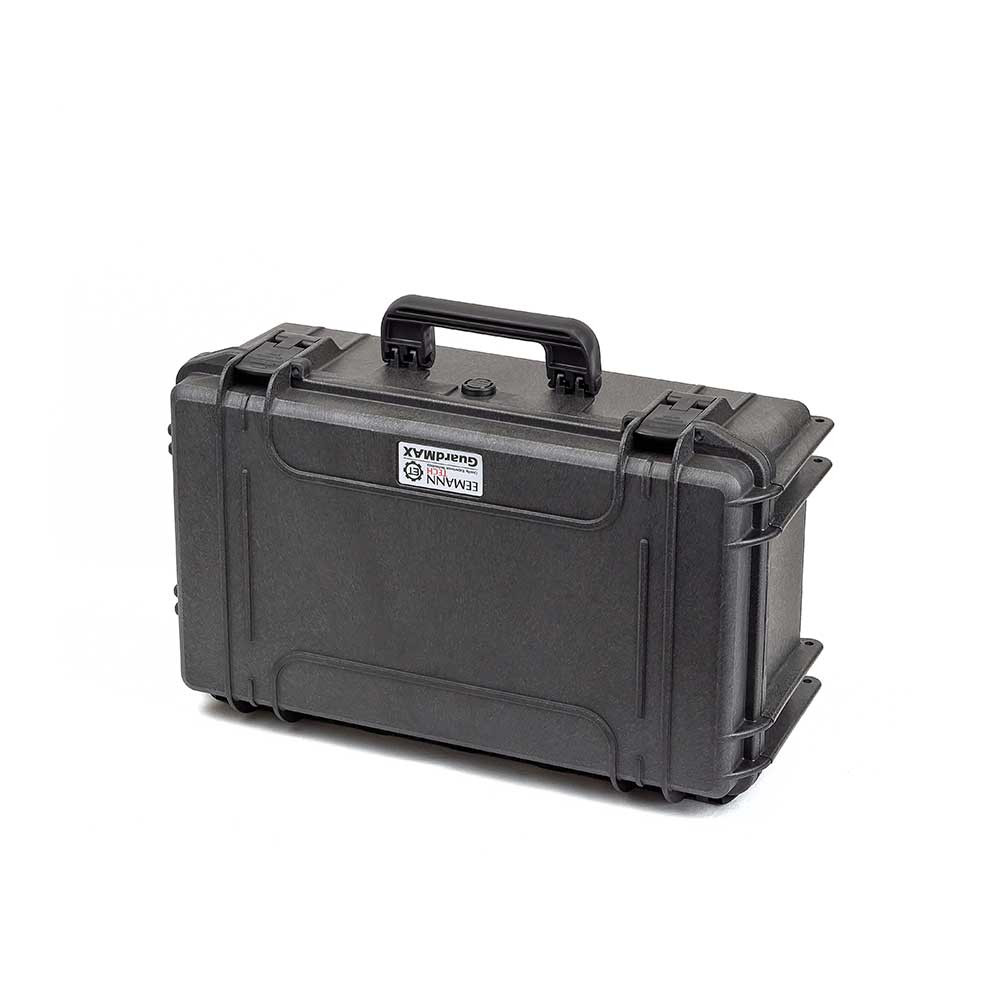

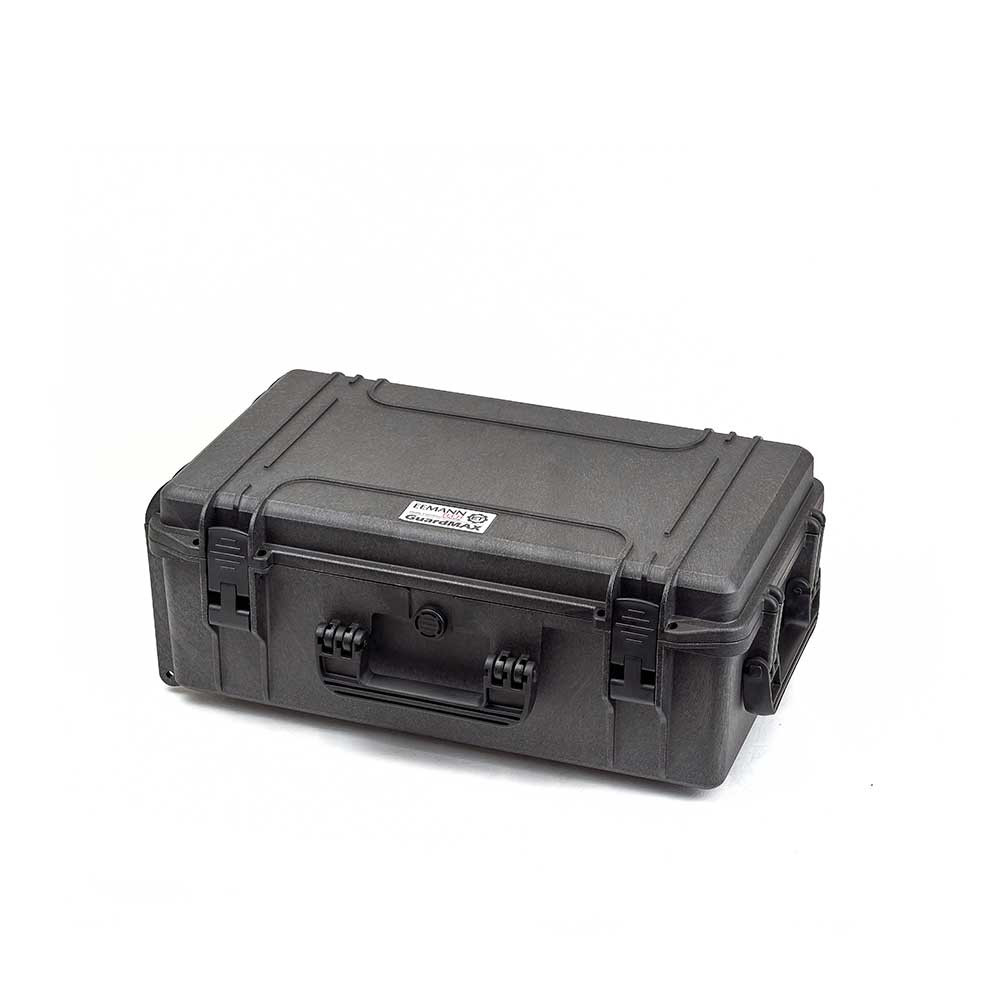

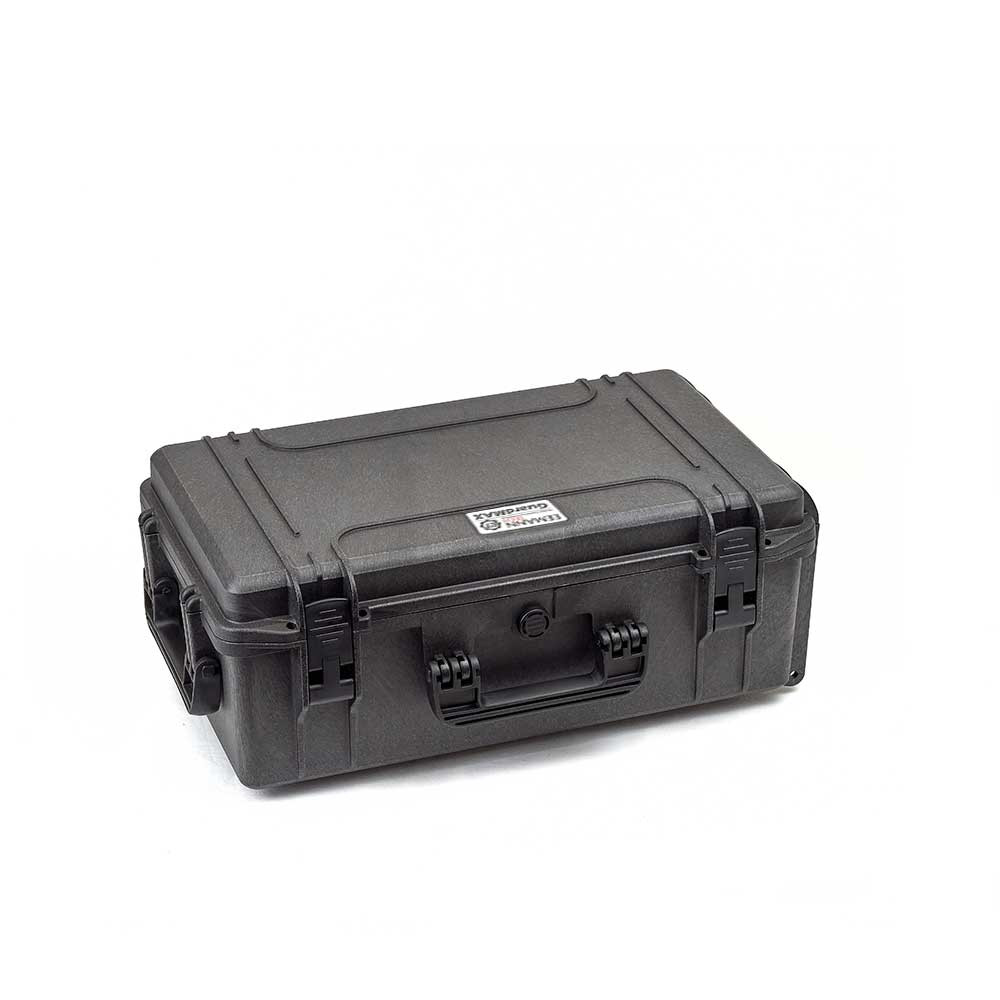

Eemann Tech GUARDMAX 520 Waterproof IP67 Case
Eemann Tech GUARDMAX 520 Waterproof IP67 Case
Eemann Tech GUARDMAX 520 Waterproof IP67 Case

Eemann Tech GUARDMAX case with wheels is IP67 certified, tough, durable and reliable. Extremely Durable in All Conditions!

Brand: Eemann Tech

Reference: 39-100061

RRP: 132.12 €

Eemann Tech GUARDMAX are our watertight case line designed to carry and protect sensitive equipment and materials. They are certified IP67 and meet STANAG 4280 and DEF STAN 81-41 standards as well as being NATO (NSN) coded. They are exceptionally resistant to impacts, dust and atmospheric agents, which makes them suitable for multiple fields of application including safety, law enforcement, military , hunting and outdoor, boating, photography, broadcasting and several other sectors of the manufacturing industry.

Features:
  • Waterproof and dustproof IP67 certified
  • Watertight seal around lid
  • Automatic pressure release valve
  • Easy to open double throw latches
  • Load tested soft grip handle
  • Holes for double padlocking
  • Holes for shoulder strap
  • Stackable interlocking system
  • Thick body material
  • Fully length hinges
  • Nylon pins, corrosion free

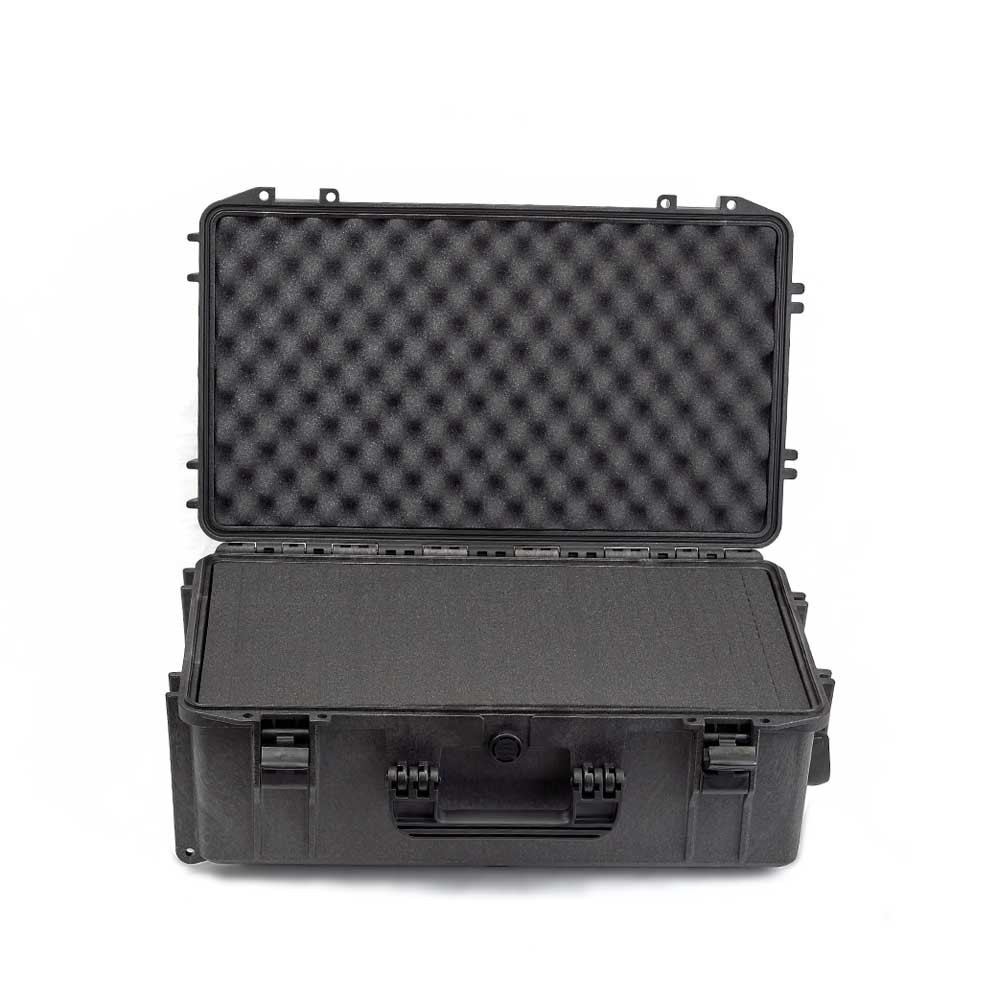

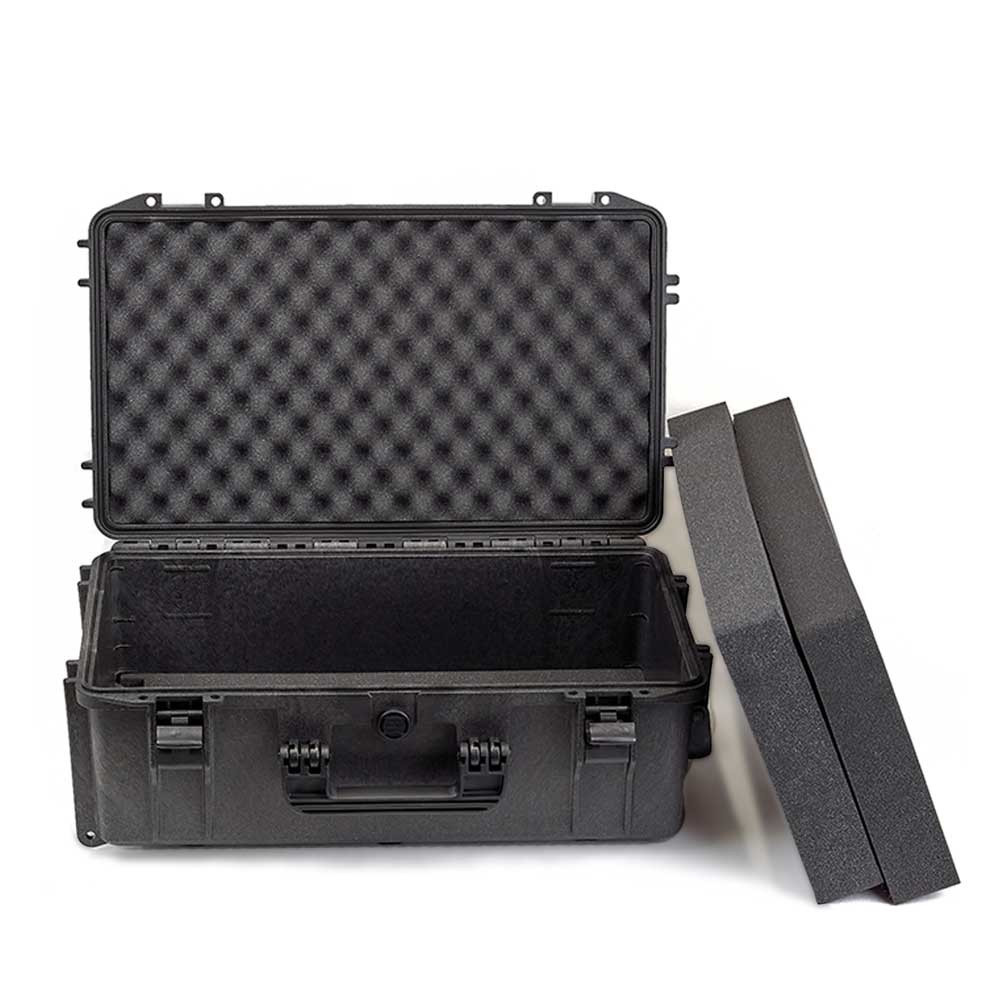

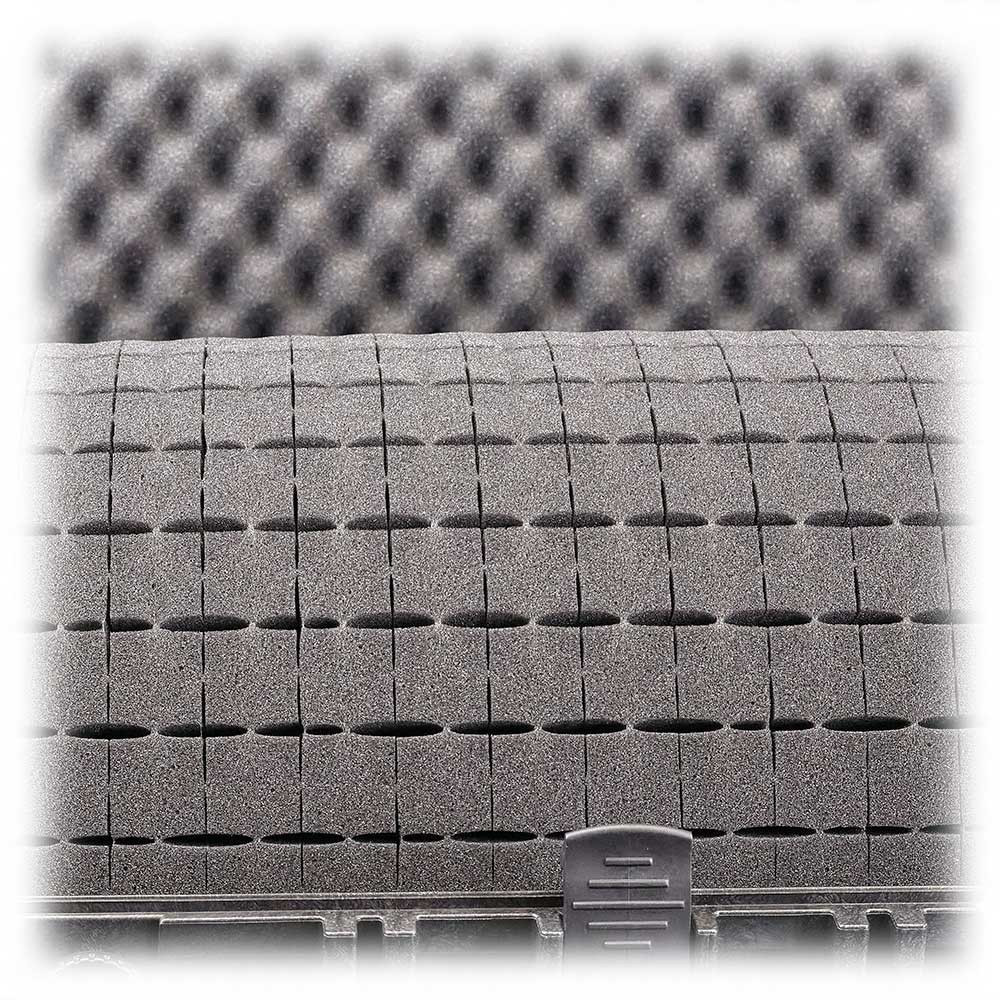

  • Cubed foams in the bottom and convoluted foams in the lid available as standard
  • Screen printing space and rectangular resin label space on the lid
Characteristics

SizeHeight (mm)Width (mm)Depth (mm)
External574361225
Internal520290200

Handle Capacity: 30 kg
Volume Capacity: 30.16 Lt
Internal Cubic Volume: 30160000 cubic millimeters
Weight w/o foam: 3.580 kg
Weight with foam: 4.020 kg
Range Temperature: -30 / 90°C
Lid-Bottom depth: 45 + 155 mm
Body and handle: polypropylene copolymer
Latches: nylon
Pins: nylon + 30% fiberglass
O-ring: polymer
Moulding: injection molded
Customization: personalized nameplate/resin label
