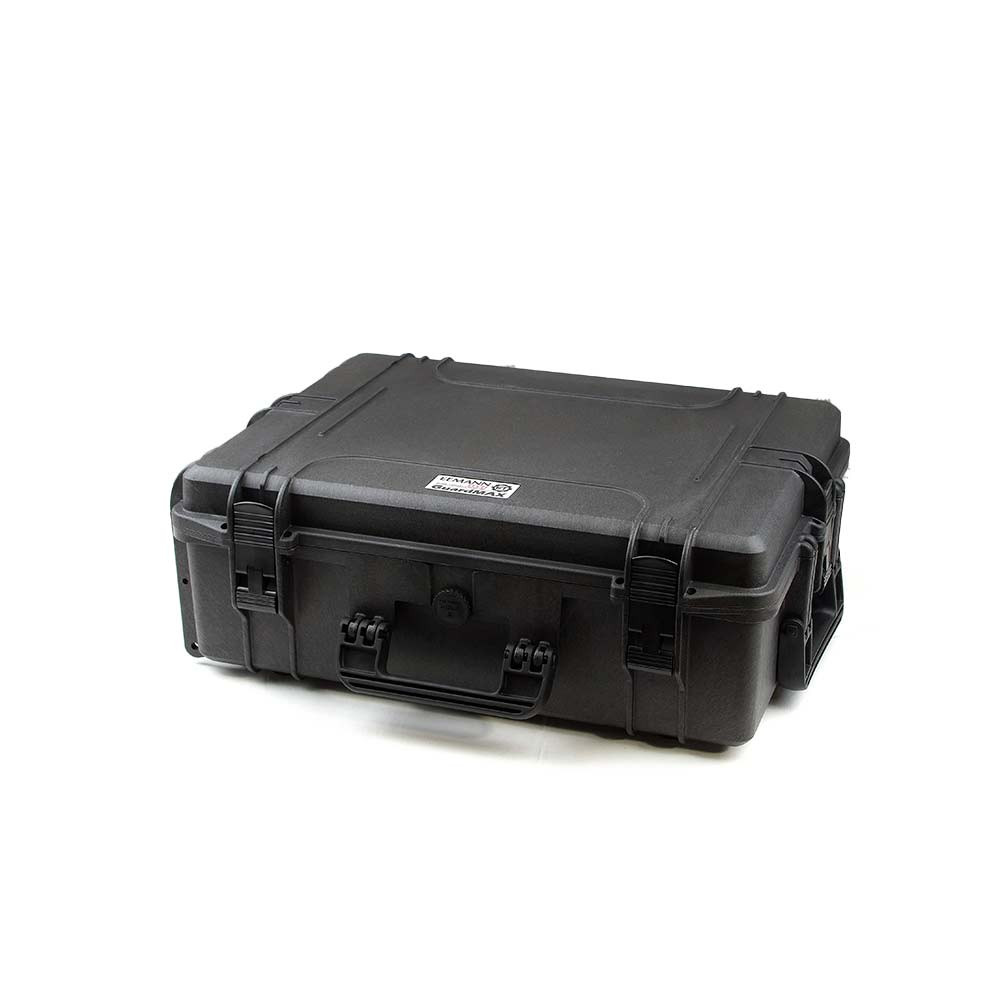

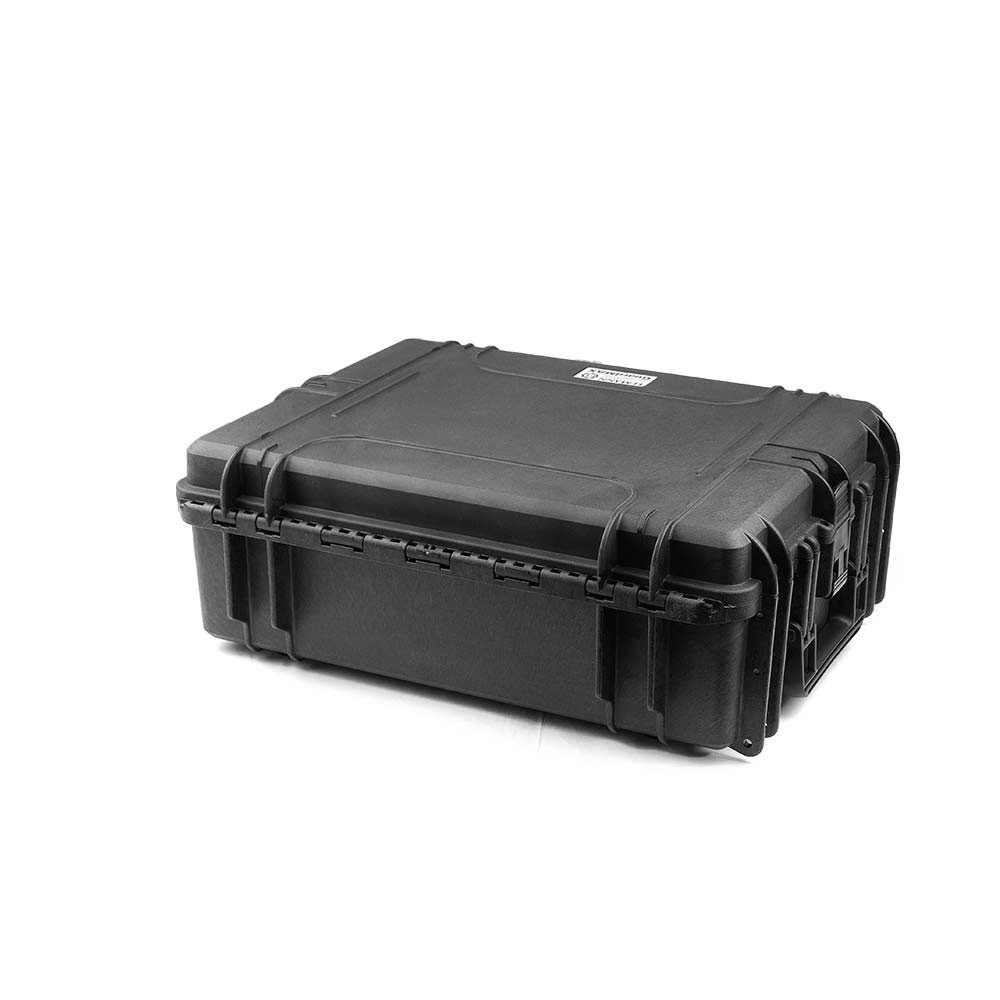

Durable and Waterproof Eemann Tech GUARDMAX 540 Case

The Eemann Tech GUARDMAX is a watertight case line designed to carry and protect sensitive equipment and materials. These cases are certified IP67 and meet STANAG 4280 and DEF STAN 81-41 standards, as well as being NATO (NSN) coded. They are exceptionally resistant to impacts, dust, and atmospheric agents, making them suitable for multiple fields of application, including safety, law enforcement, military, hunting and outdoor activities, boating, photography, broadcasting, and several other sectors of the manufacturing industry.

Features

Waterproof and dustproof IP67 certified
Watertight seal around lid
Automatic pressure release valve
Easy to open double throw latches
Load tested soft grip handle
Holes for double padlocking
Holes for shoulder strap
Stackable interlocking system
Thick body material
Fully length hinges
Nylon pins, corrosion free

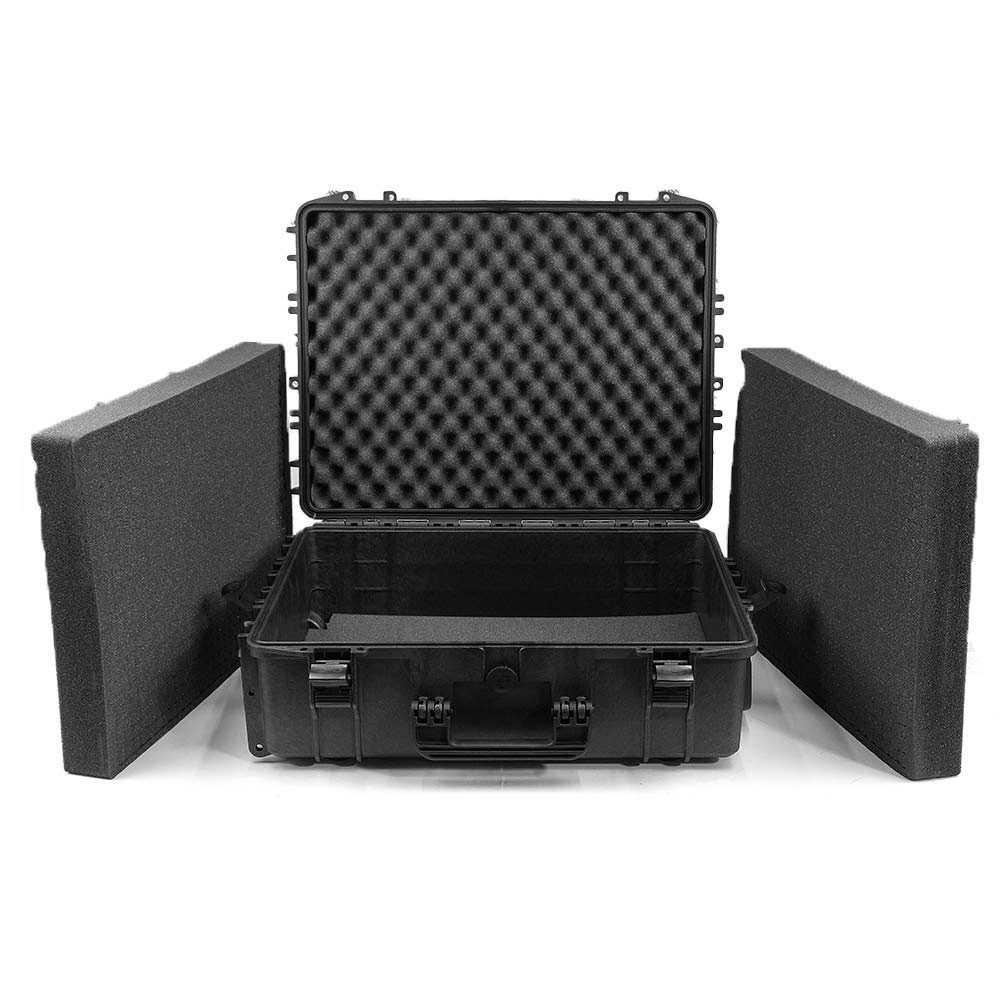

Cubed foams in the bottom and convoluted foams in the lid available as standard
Screen printing space and rectangular resin label space on the lid
IP67, DEF STAN 81-41, STANAG 4280

Characteristics

Size	Height (mm)	Width (mm)	Depth (mm)
External	594	473	215
Internal	538	405	190

Specifications

Handle Capacity: 30 kg
Volume Capacity: 41.40 Lt
Internal Cubic Volume: 41,399,100 cubic millimeters
Weight w/o foam: 4.76 kg
Weight with foam: 5.4 kg
Range Temperature: -30 / 90°C
Lid-Bottom depth: 50 + 155 mm
Body and handle: polypropylene copolymer
Latches: nylon
Pins: nylon + 30% fiberglass
O-ring: polymer
Moulding: injection molded
Customization: personalized nameplate/resin label
