IP67 certified Waterproof Pistol Case Eemann Tech GUARDMAX with Cubed foams.

Brand: Eemann Tech

Reference: 39-100001

RRP: 50.78 €

Combination's Reference: 39-100001,39-100002,39-100003,39-100004,39-100011,39-100012,39-100031,39-100032,39-100051,39-100053

Eemann Tech GUARDMAX are our watertight case line designed to carry and protect sensitive equipment and materials. They are certified IP67 and meet STANAG 4280 and DEF STAN 81-41 standards as well as being NATO (NSN) coded. They are exceptionally resistant to impacts, dust and atmospheric agents, which makes them suitable for multiple fields of application including safety, law enforcement, military , hunting and outdoor, boating, photography, broadcasting and several other sectors of the manufacturing industry.

Features:
  • Waterproof and dustproof IP67 certified
  • Watertight seal around lid
  • Automatic pressure release valve
  • Easy to open double throw latches
  • Load tested soft grip handle
  • Stackable interlocking system
  • Thick body material
  • Extra fixing points
  • Fully length hinges
  • Nylon pins, corrosion free

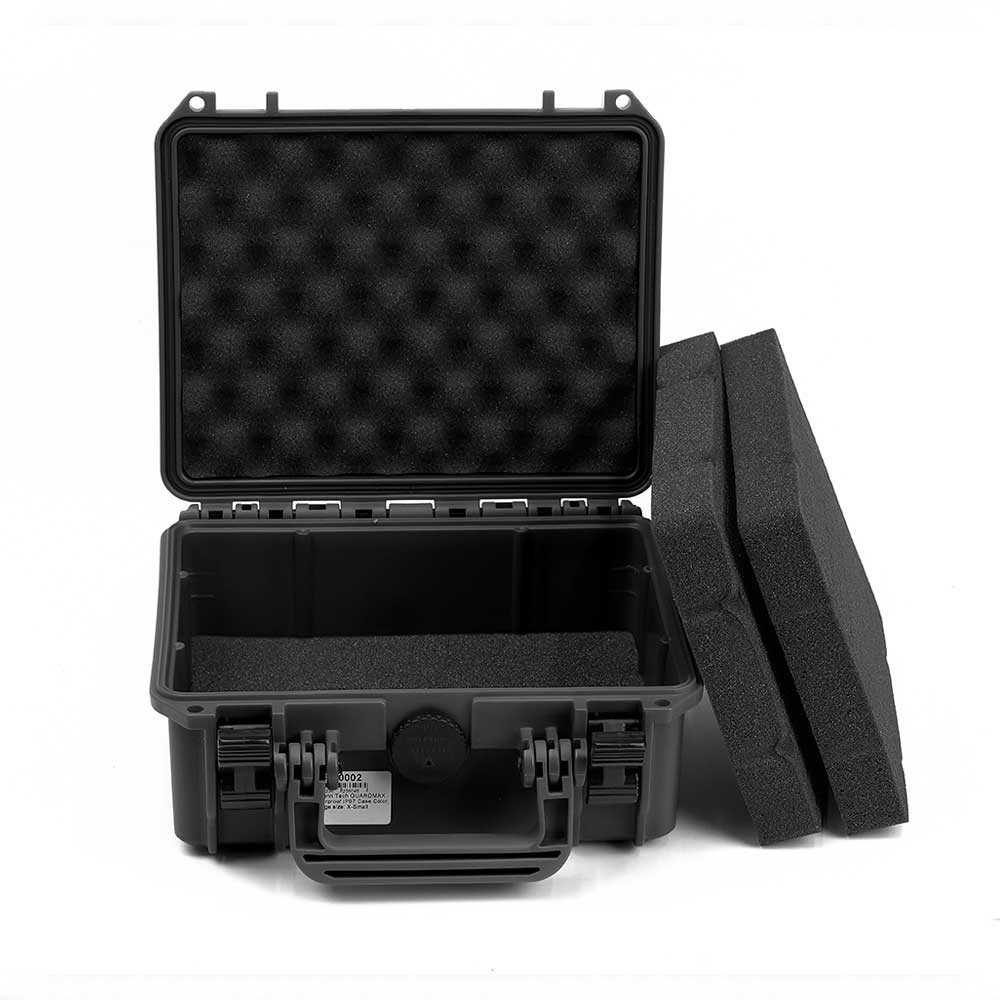

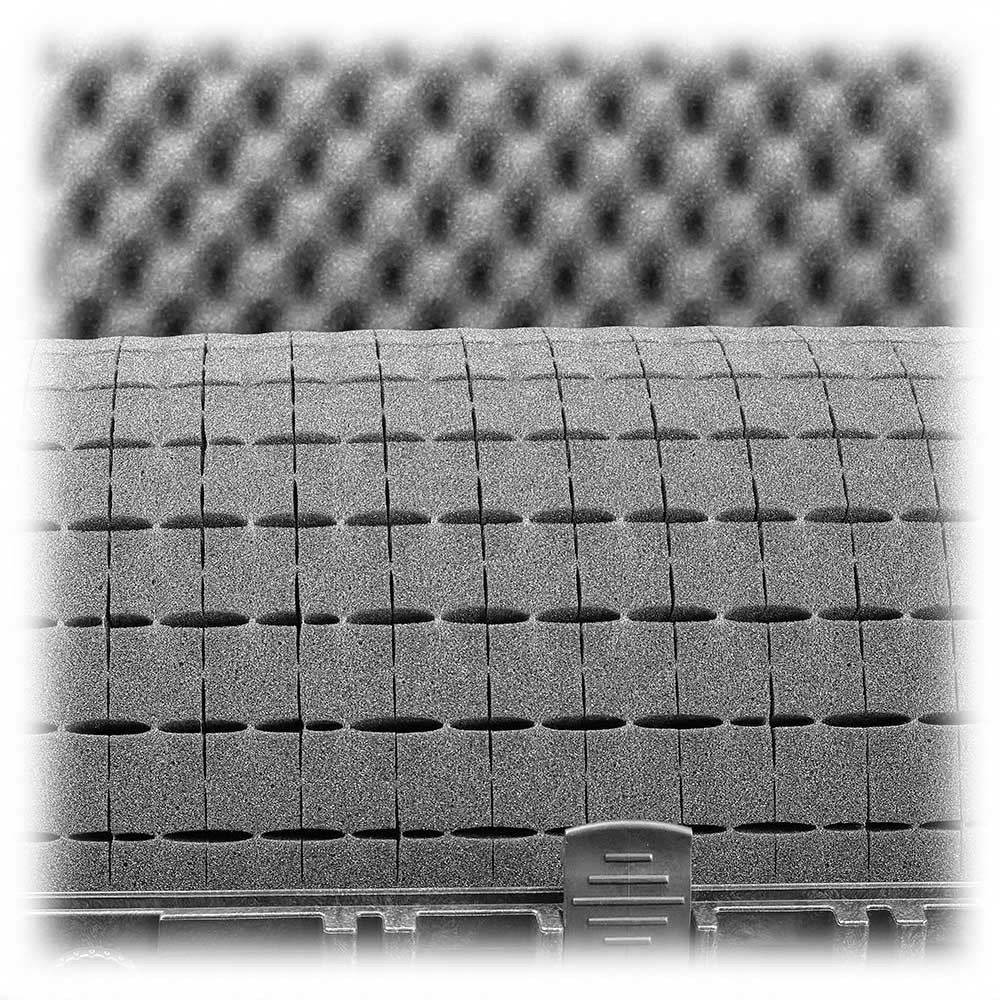

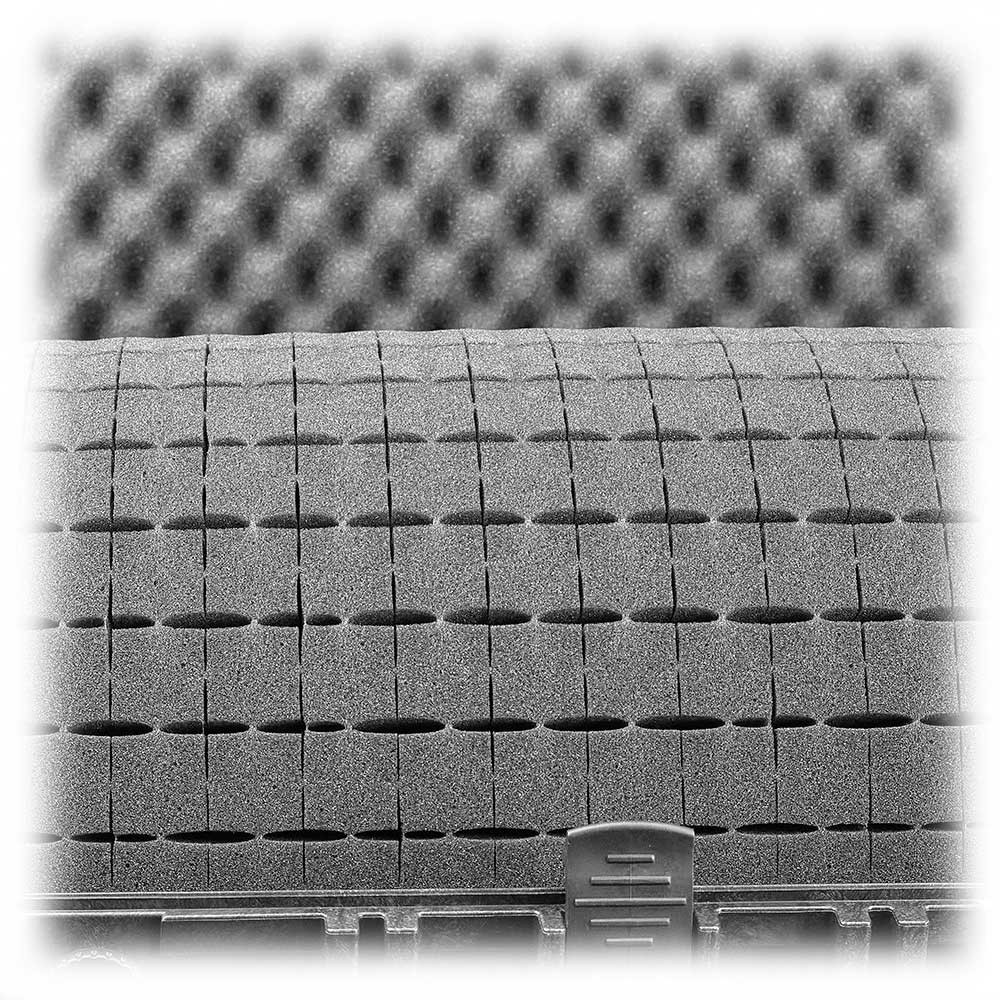

  • Cubed foams in the bottom and convoluted foams in the lid available as standard
  • Screen printing space and rectangular resin label space on the lid
  • IP67, DEF STAN 81-41, STANAG 4280

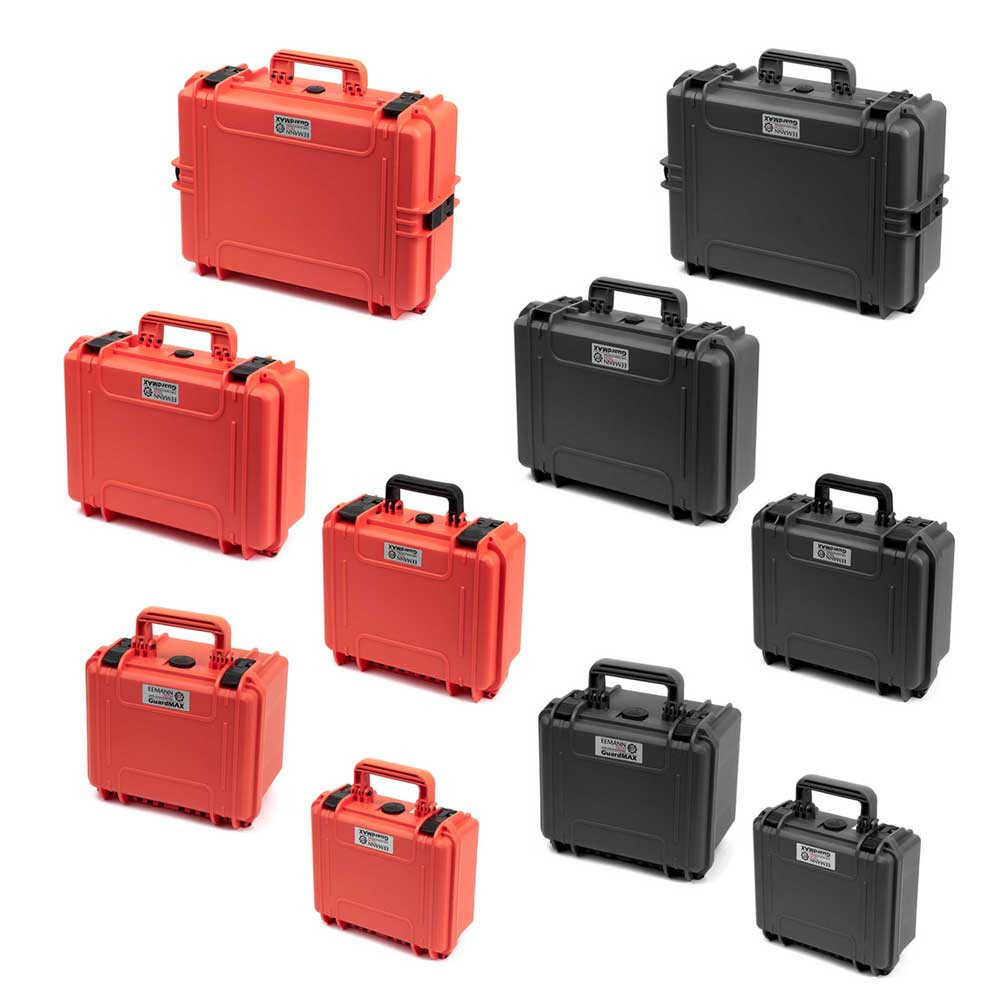

Dimensions:

X-SMALL
• Internal dimensions: 235 x 180 x h106 mm
• External dimensions: 258 x 243 x h117.5 mm
• Handle Capacity: 15 Kg
• Volume Capacity: 4.48 Lt
• Weight: 0.88 Kg

SMALL
• Internal dimensions: 235 x 180 x h156 mm
• External dimensions: 258 x 243 x h167.5 mm
• Handle Capacity: 15 Kg
• Volume Capacity: 6.60 Lt
• Weight: 1.06 Kg

MEDIUM
• Internal dimensions: 300 x 225 x h132 mm
• External dimensions: 336 x 300 x h148 mm
• Handle Capacity: 20 Kg
• Volume Capacity: 8.91 Lt
• Weight: 1.7 Kg

LARGE
• Internal dimensions: 426 x 290 x h159 mm
• External dimensions: 464 x 366 x h176 mm
• Handle Capacity: 30 Kg
• Volume Capacity: 19.64 Lt
• Weight: 3.04 Kg

X-LARGE
• Internal dimensions: 500 x 350 x h194 mm
• External dimensions: 555 x 428 x h211 mm
• Handle Capacity: 30 Kg
• Volume Capacity: 33.95 Lt
• Weight: 4.38 Kg

Range Temperature: -30 / 90°C
Body and handle: polypropylene copolymer
Latches: nylon
Pins: nylon + 30% fiberglass
O-ring: polymer
Moulding: injection molded
